Limestone is a common sedimentary rock whose main component is calcium carbonate (CaCO₃). Widely distributed in nature, it ranks among the most prevalent rocks on the Earth’s surface. High-quality limestone, after being ground into powder, is extensively used in numerous industrial fields such as flue gas desulfurizers for power plants, concrete admixtures, papermaking, and rubber manufacturing, serving as a key raw material in the production of a wide range of products. From infrastructure construction to environmental protection, from daily necessities to high-end manufacturing, limestone acts as a versatile material, deeply integrated into every link of the industrial chain and quietly underpinning the production and development of modern society.

Liming Heavy Industry has focused on the field of grinding equipment for nearly 40 years, committing itself to technological innovation and process optimization with rich project experience and a professional service system. We provide overall solutions for limestone powder production, and offer advanced equipment such as LM vertical roller mill and MTW European type grinding mill to meet diverse application needs. These equipment feature advanced craftsmanship, stable operation, energy efficiency and environmental friendliness. Adhering to the principle of service first, we deliver full-lifecycle professional support to customers. From preliminary process design and equipment selection, to on-site installation and commissioning in the construction phase, and further to later operation & maintenance and spare parts supply, we provide all-round accompaniment throughout the whole process to ensure efficient, stable and reliable operation of projects.

Recommended Equipment for Limestone Powder Processing

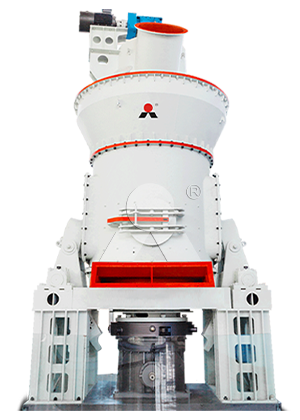

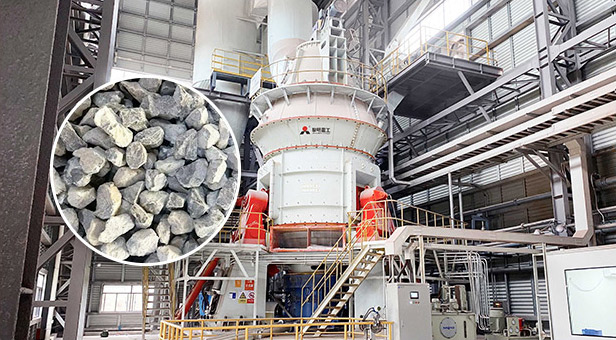

LM Vertical Roller Mill

The LM vertical mill is an independently developed product with proprietary intellectual property rights, developed by integrating modern grinding technology. It effectively solves the problems of high energy consumption, low output and high maintenance cost in limestone powder production. With stable performance, high operation efficiency, large output and a high degree of automation, it is an ideal choice for large-scale limestone processing.

  • Integrated Drying and Pulverizing
  • Intelligent Operating System
  • Energy-Efficient, Eco-Friendly, High Output
Online Consultation

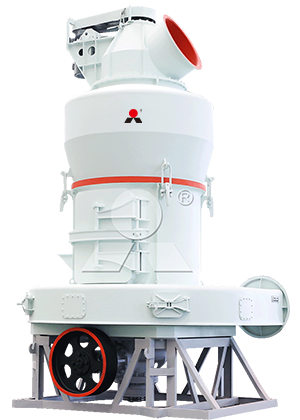

MTW European Type Grinding Mill

Relying on innovative grinding technology, the MTW European Type Grinding Mill achieves comprehensive breakthroughs in key links including transmission, lubrication, air duct, roller and ring structure, powder selection system, air inlet volute and intelligent control. The equipment fully meets the process requirements of limestone powder making, ensures consistently stable finished product quality, and supports the realization of efficient, stable, energy-saving and intelligent production.

  • Energy-Efficient & Eco-Friendly
  • Thin Oil Lubrication
  • Mature & Stable
Online Consultation

Technical Advantages of Limestone Powder Processing

Advanced Technology

It integrates crushing, drying, grinding, powder selection and conveying into one unit. Adopting national patented technology and upgraded through four generations, it features advanced process and stable operation.

Low Operating Cost

Adopting integral bevel gear transmission, it delivers strong power, high efficiency, large output and low energy consumption. The sunken design ensures smooth operation with low vibration and low noise.

High Degree of Automation

The curved arc air duct effectively prevents material blockage. The new suspended cage-type powder separator adopts frequency conversion control, achieving high powder selection efficiency and stable and reliable transmission.

High Efficiency & Environmental Protection

The whole system operates under negative pressure. Equipped with high-efficiency pulse dust collectors for dust recovery, the entire production line has no dust emission and complies with national environmental protection standards.

Technical Parameters for Limestone Grinding Equipment

Technical Parameter Table of LM Vertical Roller Mill

Technical Parameter Table of MTW European type grinding mill

Limestone Grinding Process Flow

Stage 1

Crushing:Large limestone blocks are processed by a crusher to reach the feed particle size requirement (15mm–50mm) suitable for the grinding mill.

Stage 2

Grinding:The crushed limestone is conveyed by an elevator to the silo, then fed evenly and quantitatively into the grinding chamber of the mill by a vibrating feeder. For fine powder processing, the LM vertical roller mill and MTW European-type mill are available for grinding operation.

Stage 3

Classification:The ground limestone powder is classified by a powder classifier. Unqualified powder is returned to the main mill for re-grinding after classification.

Stage 4

Powder Collection:Qualified limestone powder with required fineness is carried by airflow through pipelines into the dust collector for separation and collection. The collected finished powder is conveyed from the discharge outlet to the finished product silo via conveying equipment, and finally packaged by bulk powder tank trucks or automatic packing machines.

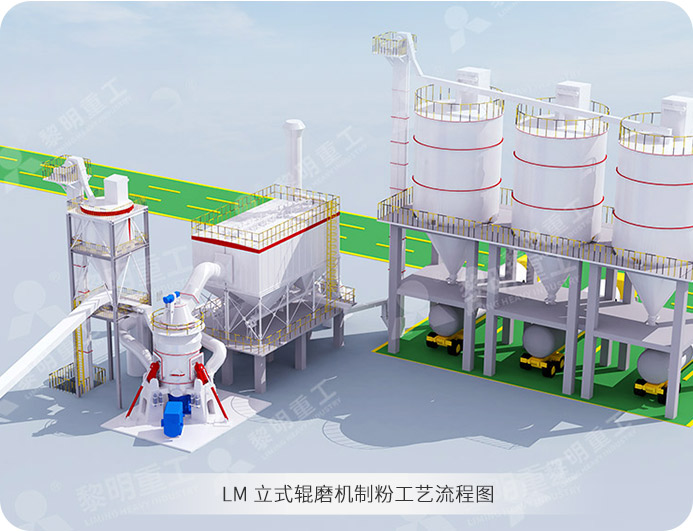

LM Vertical Roller Mill Limestone Deep Processing Flowchart

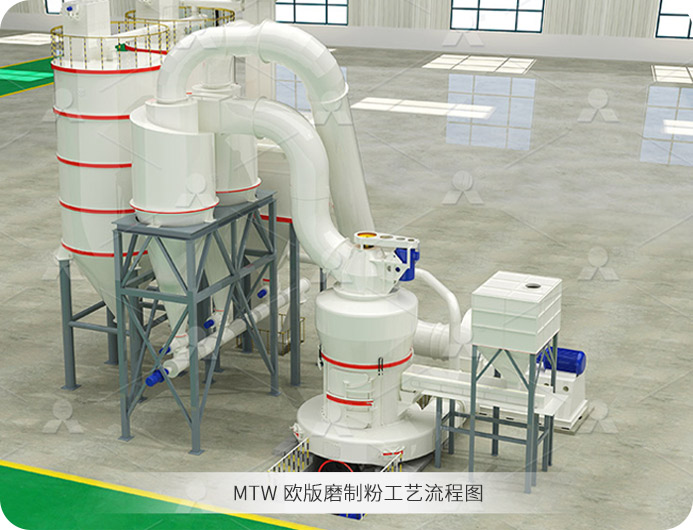

MTW European Type Grinding Mill Limestone Deep Processing Flowchart

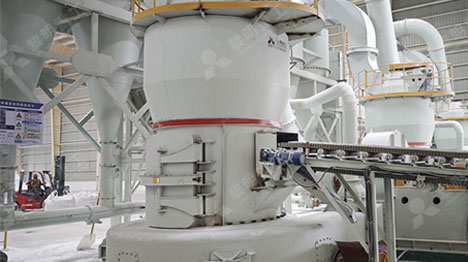

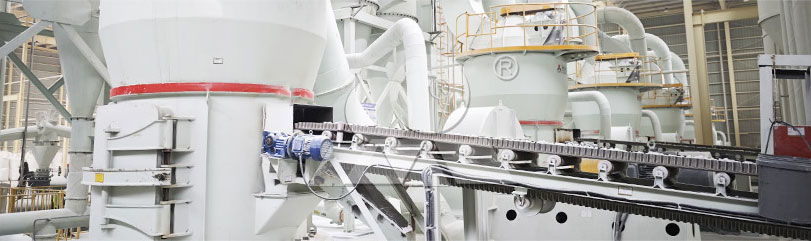

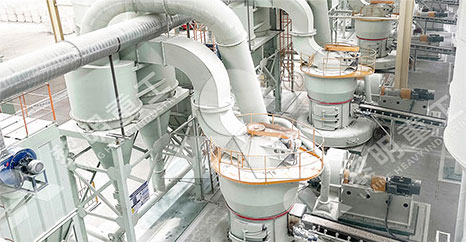

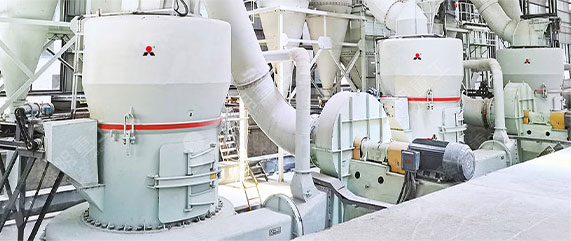

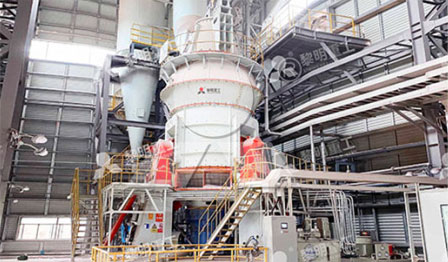

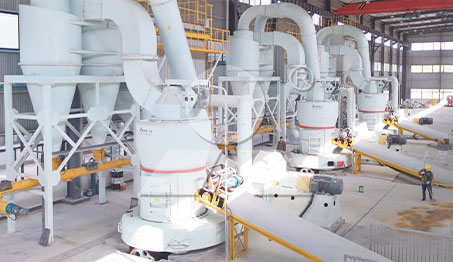

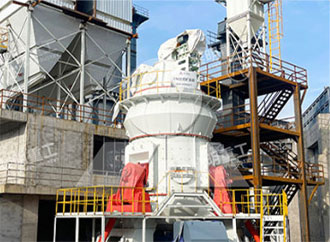

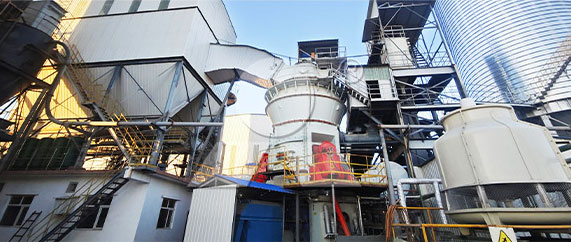

Cases of Limestone Powder Processing

Consult Now0371-67986655

Limestone Grinding EPC Project — Turnkey Engineering

Liming Heavy Industry always centers on customers’ demands, providing one-stop EPC general contracting services covering design, procurement and construction. In accordance with the characteristics of different projects, it also offers professional and customized limestone production line equipment and overall solutions.

  • 01

    Technical Exchange

  • 02

    Customized Solutions

  • 03

    Equipment Manufacturing

  • 04

    Installation & Commissioning

  • 05

    Operation Guidance

  • 06

    Spare Parts Supply

  • 07

    Operations Management

  • 08

    Technical Support & Q&A

ABOUT US

Liming Heavy Industry

A Powerful Provider of Overall Solutions for Limestone Powder Processing

As an enterprise driven by technological innovation, Liming Heavy Industry Co., Ltd. boasts an expert team composed of authoritative professionals in the grinding industry. Focusing on independent innovation and absorbing mature technologies at home and abroad, it keeps pace with global cutting-edge technology, and fully promotes the rapid development and upgrading of grinding equipment.

  • 1600

    Acre Production Base

  • 680+

    National Patents

  • 689

    Sets of Process Equipment

  • 180

    Countries/Regions
