Processed Materials:

  • Stone Paper Grinding Mill

    Stone Paper Grinding Mill

  • Manganese Ore Grinding Mill

    Manganese Ore Grinding Mill

  • Marble mill

    Marble mill

  • Kaolin mill

    Kaolin mill

Applications:

limestone desulfurization in power plant, heavy calcium carbonate processing, non-metallic mineral powder making, solid fuel grinding, building materials and chemical industry.

Capacity: 3-55T/H

Input size: 30-50mm

Performance Advantages

Mature technology and stable Performance: 4th generation mill, more than 30 years of mill manufacturing experience. Bevel gear overall drive provides strong power. the production capacity increased by 20% under the same power condition.

1

Economical and reliable: can grind a variety of minerals to meet the needs of different specifications of particle size; low investment cost, low operating cost, single machine processing capacity up to 60T/H.

2

Low cost, less maintenance: Patented technology, with Inner automatic thin-oil lubricating system, long oil change cycle, low frequency, low cost.

3

Scientific allocation, low energy consumption: Adjustable output size, efficient powder production. The vulnerable parts adopt special technology and material, more wear-resistant.

4

Environmental protection: unique air recycling system, together with advanced dust collector make environment much cleaner.

5

Working Principle

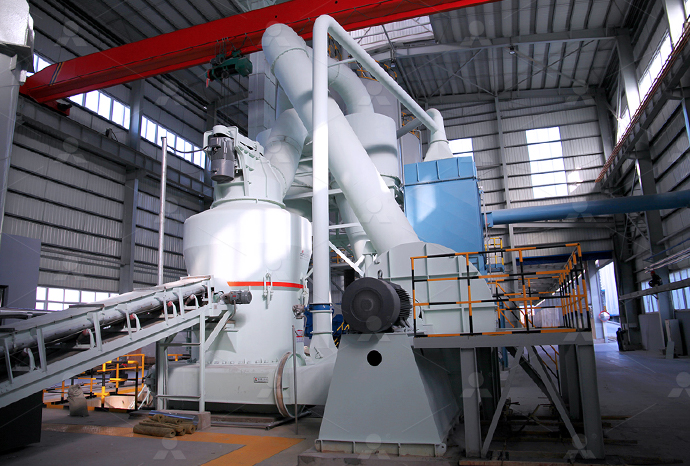

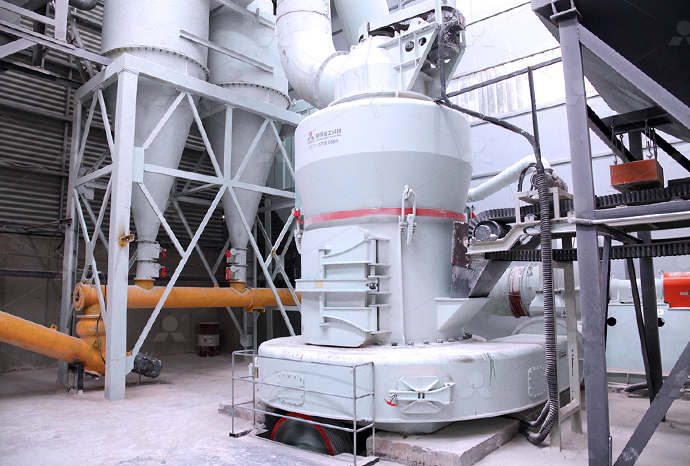

The system of MTW grinding line consists of grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc. Big lump materials are crushed to required size by jaw crusher. Then through the variable-frequency belt feeder, it is evenly and continuously fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system. The system is equipped with the pulse dust collector, which complies with national environmental protection standards.

Specifications

Hot Sale: patented technology, high productivity, environmental protection and energy saving

FAQ

1.

Can the MTW European Type Trapezium Mill be used for large-scale heavy calcium carbonate grinding?

Yes. The MTW European Type Trapezium Mill is a mature choice for large-scale non-metallic grinding; heavy calcium projects reach dozens of tons per hour with fineness adjustable between 80 and 400 mesh for plastics, coatings, paper and rubber, suiting continuous mass production.

2.

What transmission method does the MTW European Type Trapezium Mill use?

The MTW European Type Trapezium Mill adopts bevel-gear integral drive: the main motor drives the central shaft via a reducer for a short chain and precise ratio with smooth, efficient power. The integral bevel gear cuts loss and failure points versus belt drives.

3.

What are the features of the MTW European Type Trapezium Mill analyzer?

The MTW European Type Trapezium Mill uses a large-inclination impeller analyzer with high classification precision and large air handling. The cage rotor quickly separates qualified fines while coarse returns for re-grinding, giving narrow size distribution with little over-grinding; speed is adjustable for easy fineness.

4.

What hourly production capacity does the MTW European Type Trapezium Mill cover?

MTW European version trapezoidal powder mill offers models such as MTW110, MTW125, MTW138, MTW175, MTW215, etc., with an hourly production coverage of 3 to 60 tons. Small and medium-sized, MTW European version trapezoidal milling machine 215 large size can meet the needs of large-scale milling projects, and users can flexibly choose according to the characteristics of raw materials and target fineness.

5.

Which materials is the MTW European Type Trapezium Mill suitable for processing?

The MTW European Type Trapezium Mill is ideal for non-flammable, non-explosive materials with Mohs hardness below 7 and moisture under 6%, such as limestone, calcite, dolomite, marble, gypsum, heavy calcium carbonate, bentonite, kaolin, bauxite, barite, clean coal and petroleum coke.

6.

What limits does the MTW European Type Trapezium Mill place on feed moisture and hardness?

The MTW European Type Trapezium Mill requires feed Mohs hardness below 7 and moisture under 6%. Excess hardness accelerates roller and ring wear; too much moisture causes sticking, blockage and lower selection efficiency. Pre-dry after crushing to a suitable moisture level.
