Processed Materials:
-
Stone Paper Grinding Mill
-
Quartz Stone Grinding Mill
-
Bentonite grinding and processing
-
Cement Clinker Grinding Mill
Applications:
Metallurgy, building materials, chemicals, mining, steel, highways, water conservancy and hydropower, refractories and other industries.
Capacity: 3-22T/H
Input size: 25-35mm
Performance Advantages
High consumption-reducing flexible connections, reduces vibration and noise, improve the service life of equipment.
Innovative grinding roller and ring design, reduce the speed of material decline, extending the material rolling time and improve the finished product fineness and yield.
Efficient powder sorting device, the capacity increased by 10% -15% under the same power.
Working Principle

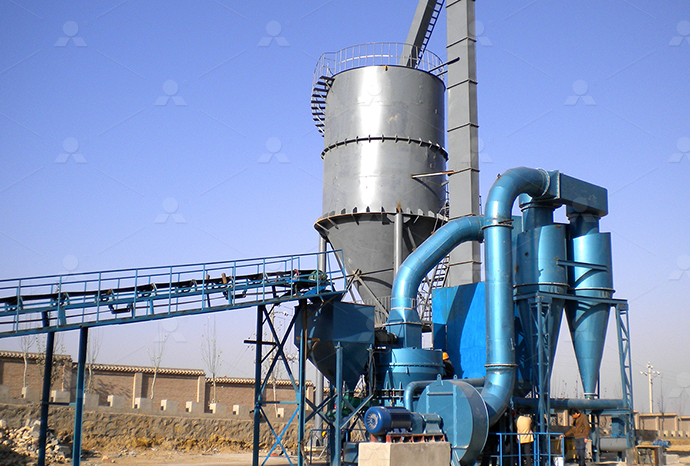

Large materials are crushed by jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously.The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector.The mainframe is driven by the speed reducer through the central axis in the mill.
Specifications
Hot Sale: patented technology, high productivity, environmental protection and energy saving
FAQ
How are TGM Super Pressure Trapezium Mill after-sales service and spare parts supplied?
The maker offers installation guidance, training, remote diagnosis and follow-ups, with key wear parts stocked for fast shipment. An annual maintenance agreement lets the maker track data and warn early, securing continuous stable operation.
How is the TGM Super Pressure Trapezium Mill fineness adjusted during operation?
TGM Super Pressure Trapezium Mill fineness is mainly set by analyzer speed: higher speed gives finer product, lower gives coarser. Some models use frequency control adjustable online via central control or APP without shutdown, with fast response and controllable size range for different orders.
How to choose between the TGM Super Pressure Trapezium Mill and the LM vertical mill?
The TGM Super Pressure Trapezium Mill suits medium-scale, multi-variety non-mineral dry grinding with high cost-performance, small footprint and flexible changeover; the LM vertical mill better fits large-scale single-variety materials needing drying. The maker advises by output and material; both beat Ball Mills.
How big are the TGM Super Pressure Trapezium Mill overall weight and footprint?
The TGM trapezoidal mill adopts a compact vertical structure, occupying a smaller overall space than ball mill systems of the same production capacity, and the height requirement of the plant is moderate. The weight of each model of the whole machine increases with the specifications, and the manufacturer will provide specific basic load and external dimension drawings for users to plan the factory and lifting plan.
What limits does the TGM Super Pressure Trapezium Mill place on feed moisture and hardness?
The TGM Super Pressure Trapezium Mill requires feed Mohs hardness below 7 and moisture under 6%. Excess hardness accelerates roller and ring wear; too much moisture causes sticking, blockage and lower selection efficiency. Pre-dry after crushing to a suitable moisture level.
What should be noted for TGM Super Pressure Trapezium Mill installation and foundation work?
As a large machine, the TGM Super Pressure Trapezium Mill needs a reinforced-concrete foundation per the maker's load and bolt layout, with proper leveling and damping. After placing main unit, classifier, collector and fan, align and bolt precisely; have the maker commission it before production.
